Showcase — The Paged Annual, volume one

A book the editor made itself

134 pages, authored by driving the real paged editor through every tool and every plugin — then held, page by page, against InDesign’s own render of the same IDML.

540 × 720 pt · three parts · twenty chapters and an appendix

Page 1 — the cover, as paged renders it.
Page 1 — the cover, as paged renders it.
How it was made

Nobody drew these pages by hand

The Annual is the output of a test suite. A generator opens the editor in a browser and drives it: every frame, story, swatch, table, effect and plugin object is authored through the same wire a user’s clicks travel down. A small base file carries only what that wire cannot author — master spreads, condition definitions, footnote options, a table-of-contents style and the named styles and swatches the pages address.

Each chapter asserts three things: it ran without throwing, the elements it reports exist, and the page’s pixels changed. The third is the one that matters — a chapter that authors nothing fails even when it threw nothing. A step that cannot run is written into the colophon with its reason, not left out.

Then the document leaves our hands. InDesign opens the exported IDML, renders every page to an image at the same resolution as our renders, and the two are compared pixel for pixel. That makes the Annual the strongest single proof that the whole stack works together: engine, editor, all six content plugins in one file, and an IDML that InDesign reads.

A showcase whose failures are invisible is a brochure.

Every asset in the book is OFL, Apache-2.0, MIT or first-party, and the colophon reprints the list — so it can be shown to anyone.

Part I · chapters 1–13 · pp. 11–74

The Document

The engine and the editor on their own: the letter, the paragraph, styles and stories, scripts of the world, objects, transparency, effects, colour, tables and pictures.

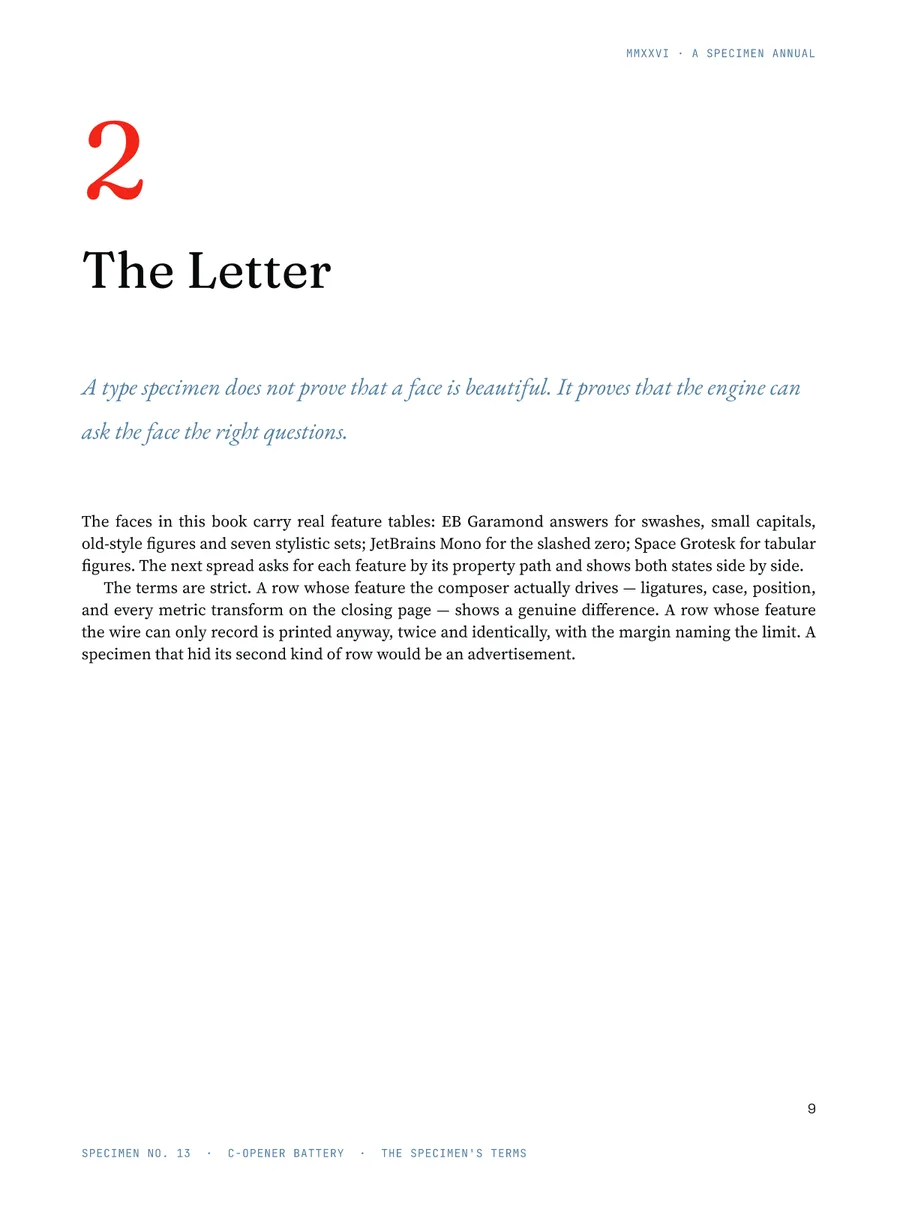

The Paged Annual — letter

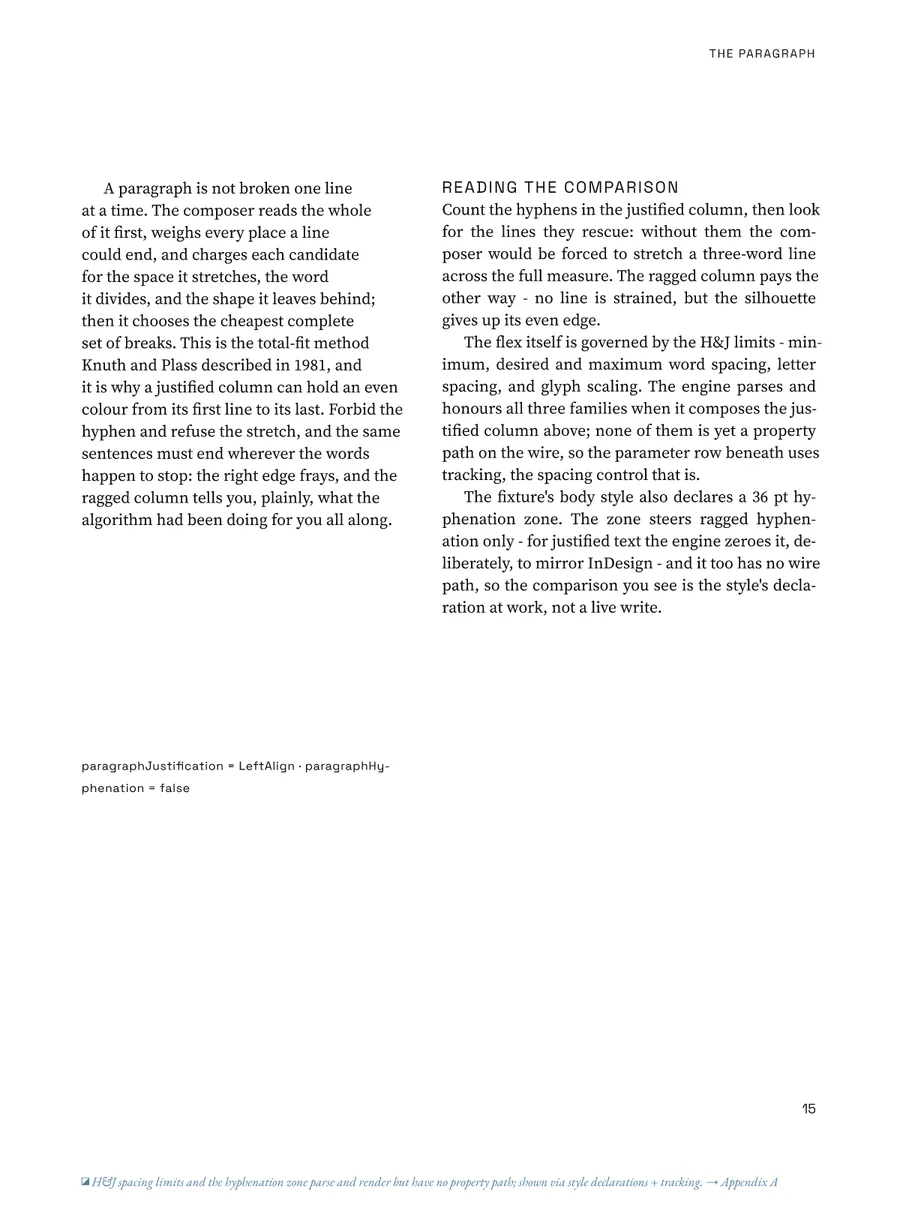

The Paged Annual — paragraph
The Paged Annual — scripts

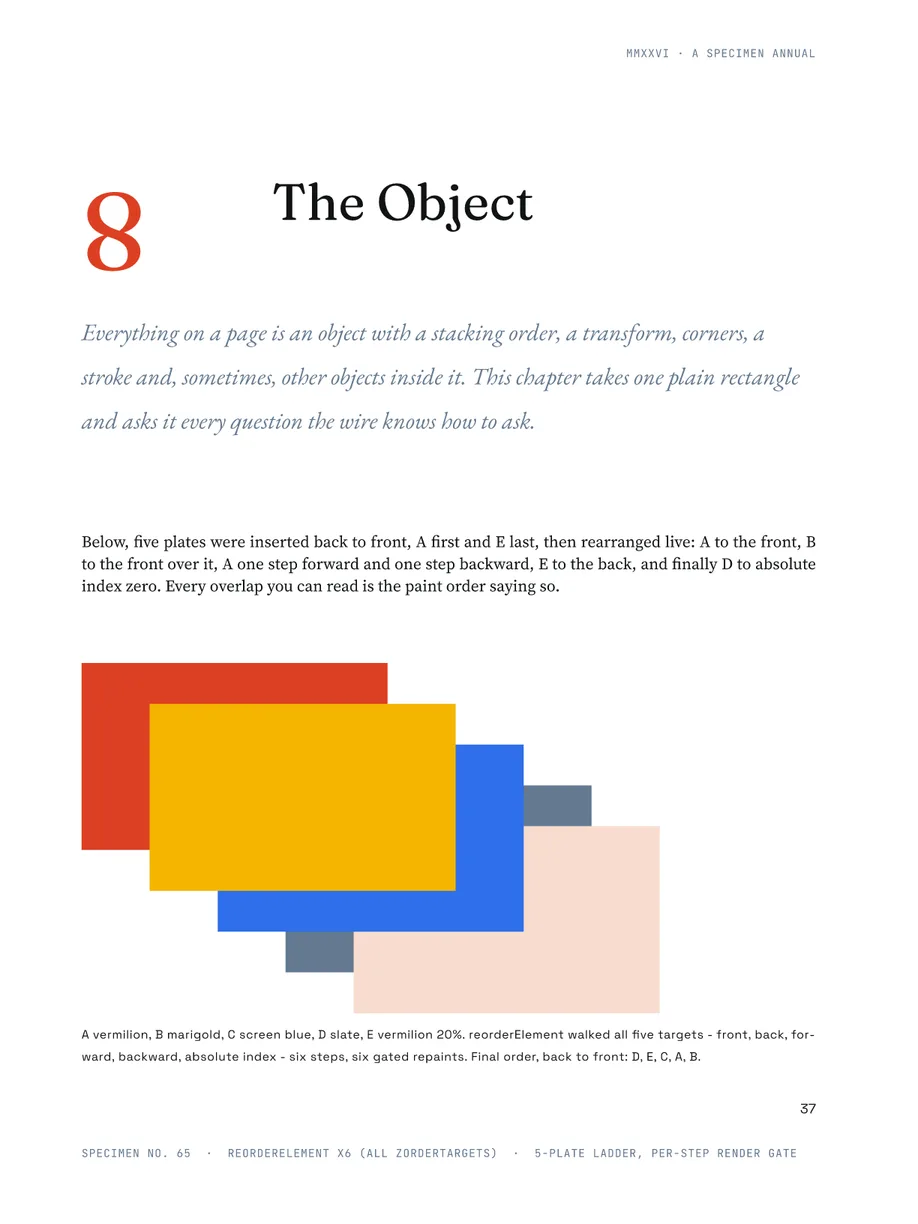

The Paged Annual — object
The Letter · The Paragraph · Scripts of the World · The Object
The Paged Annual — blend-modes

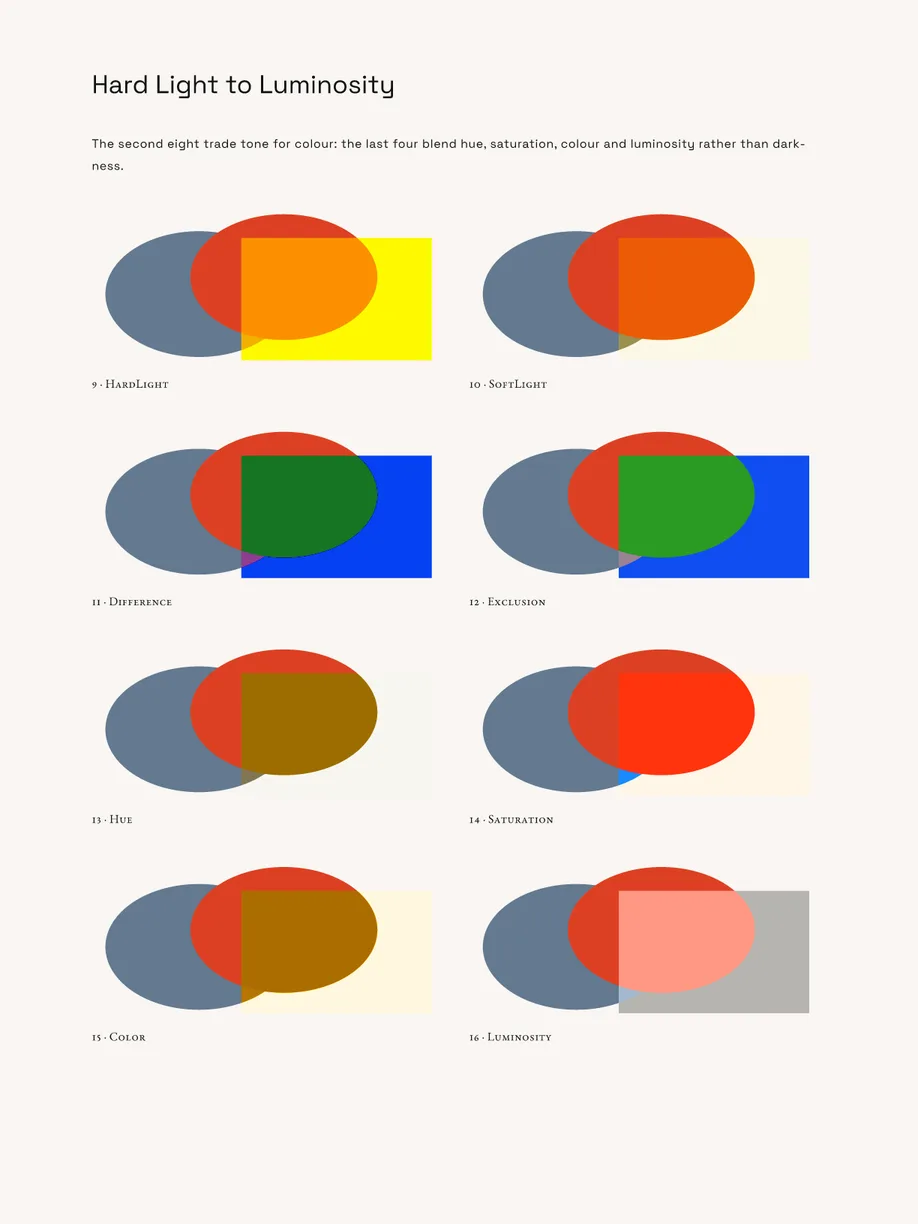

The Paged Annual — luminosity

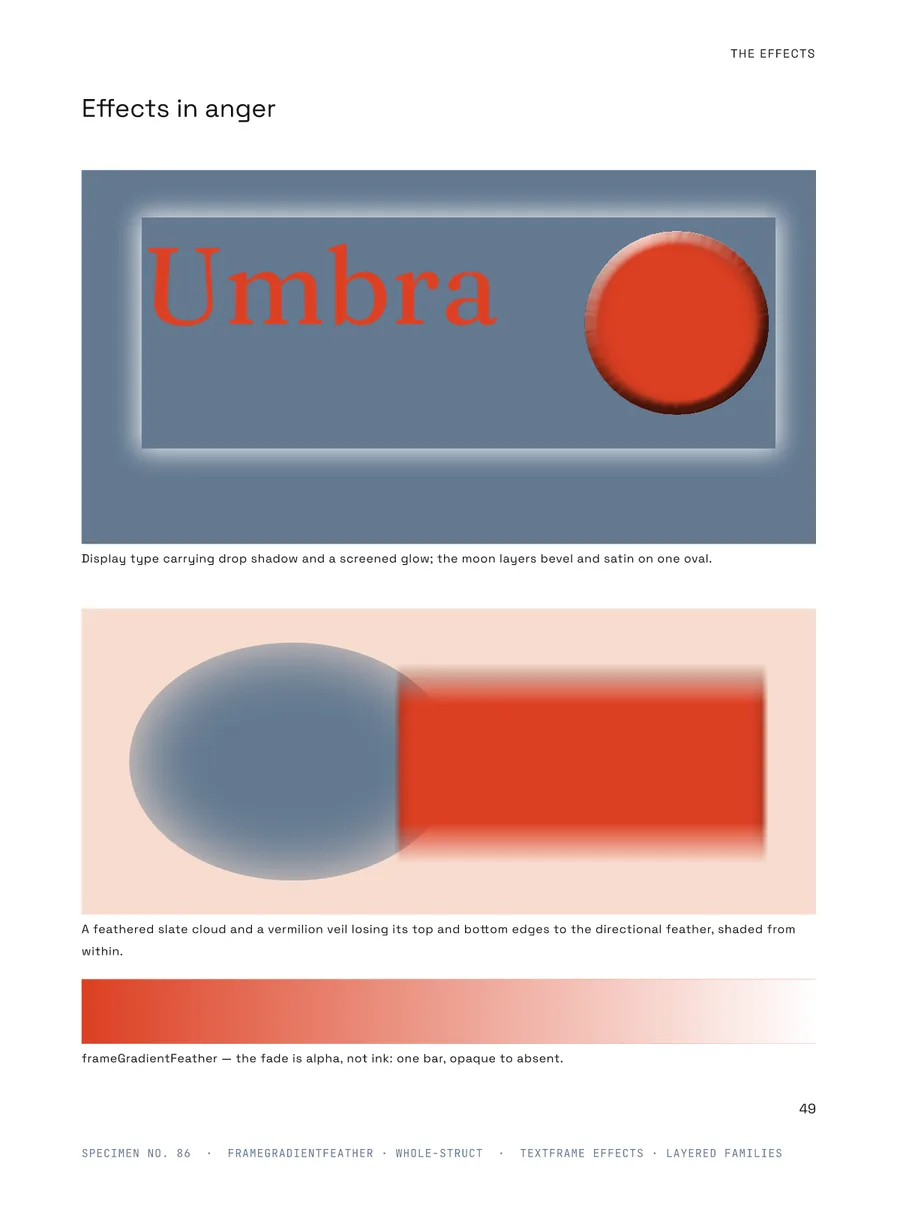

The Paged Annual — effects-anger
The Paged Annual — effects-parameters
Ink & Light · The Effects
The Paged Annual — colour

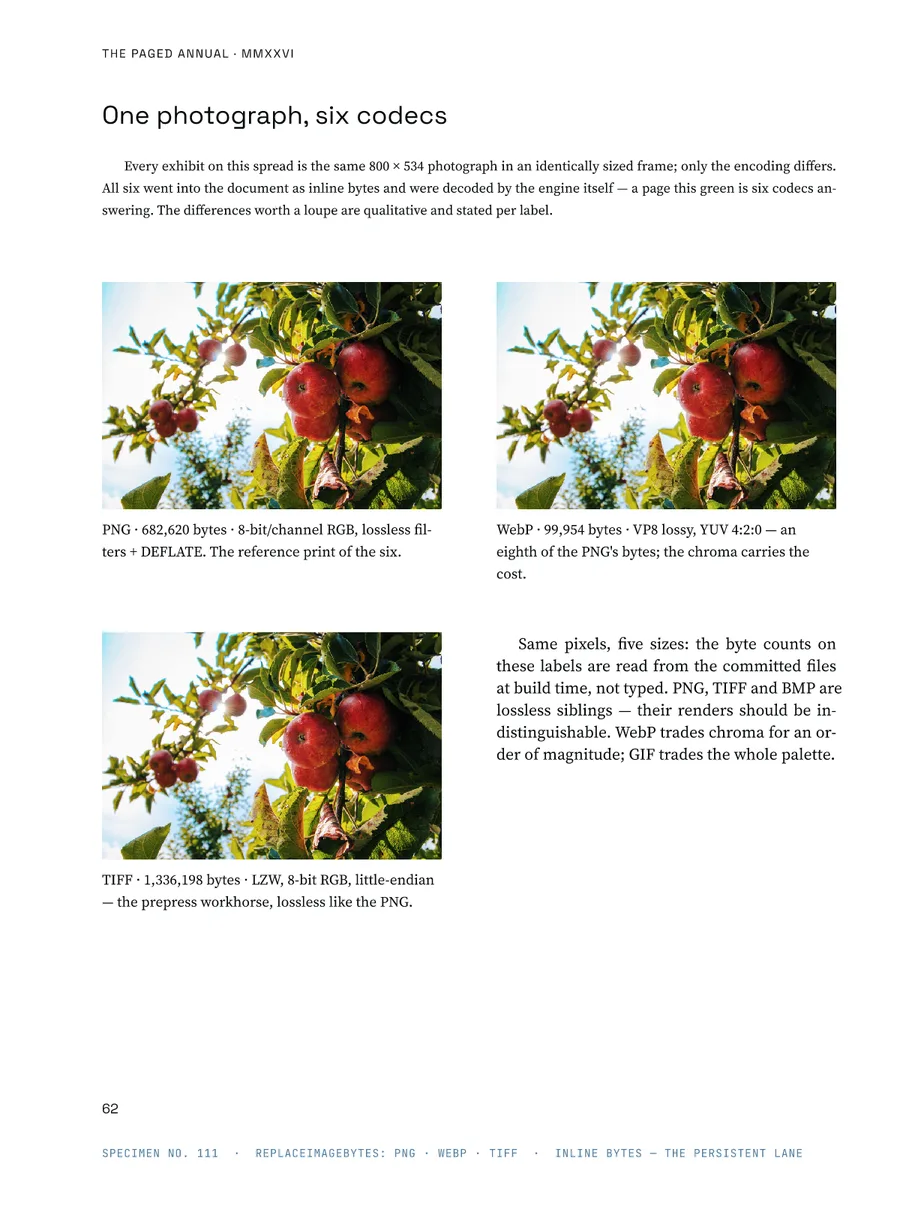

The Paged Annual — photo-codecs
The Colour · The Picture
Part II · chapters 14–19 · pp. 75–118

The Studios

One chapter per content plugin, each built inside the same document as the rest of the book.

The Drawing Office paged.draw · pp. 75–86

Pen and shape tools, pathfinder, appearance stacks, symbols and blends — vector work on the same page as the text.

The Paged Annual — drawing-office

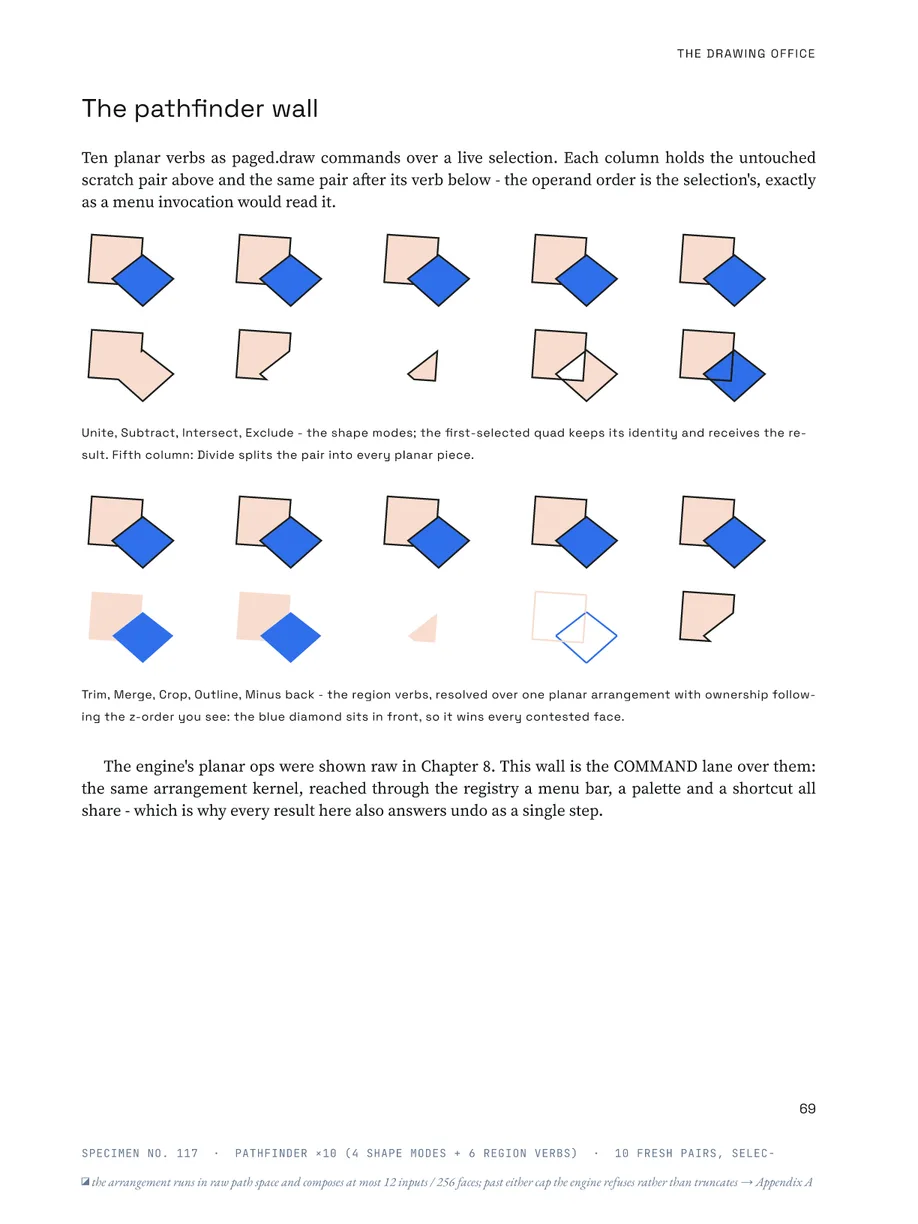

The Paged Annual — pathfinder

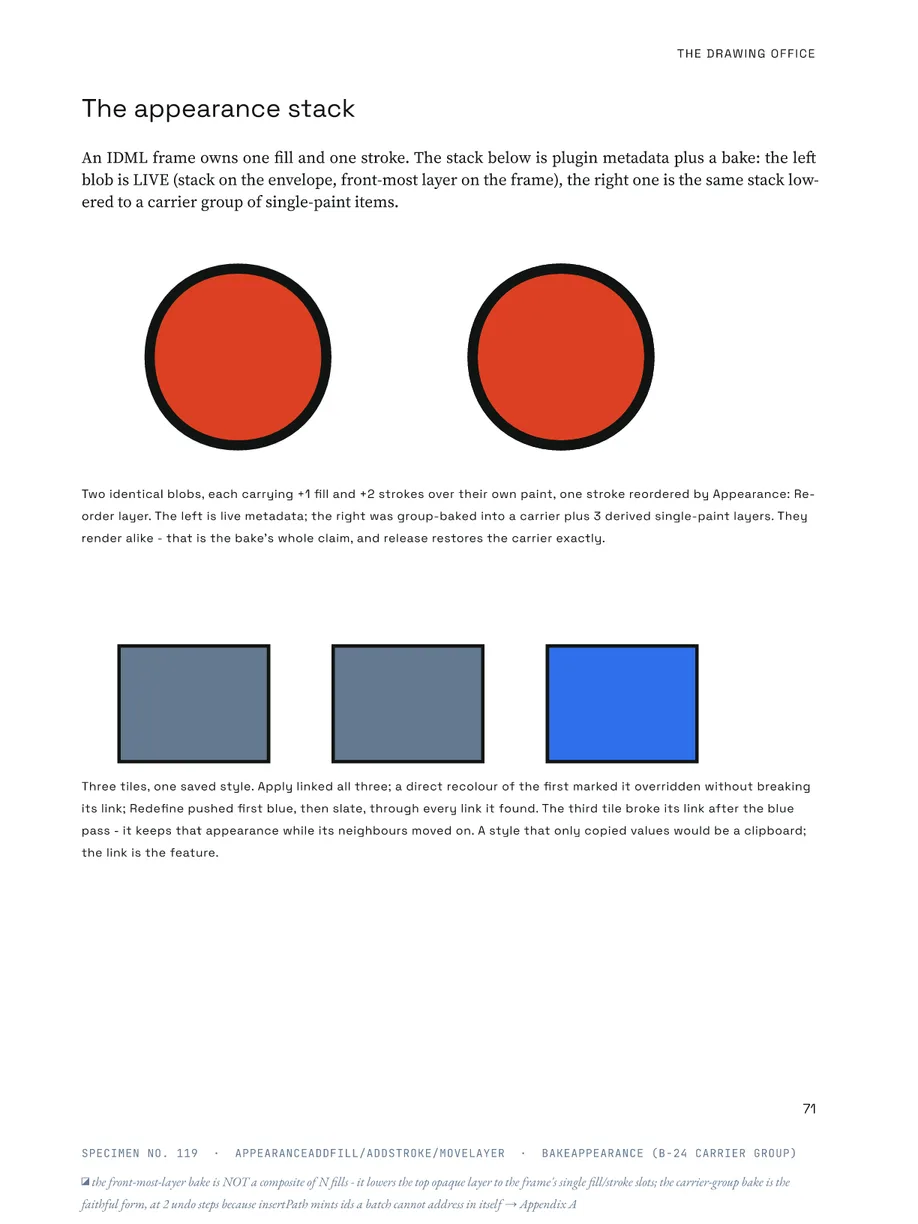

The Paged Annual — appearance

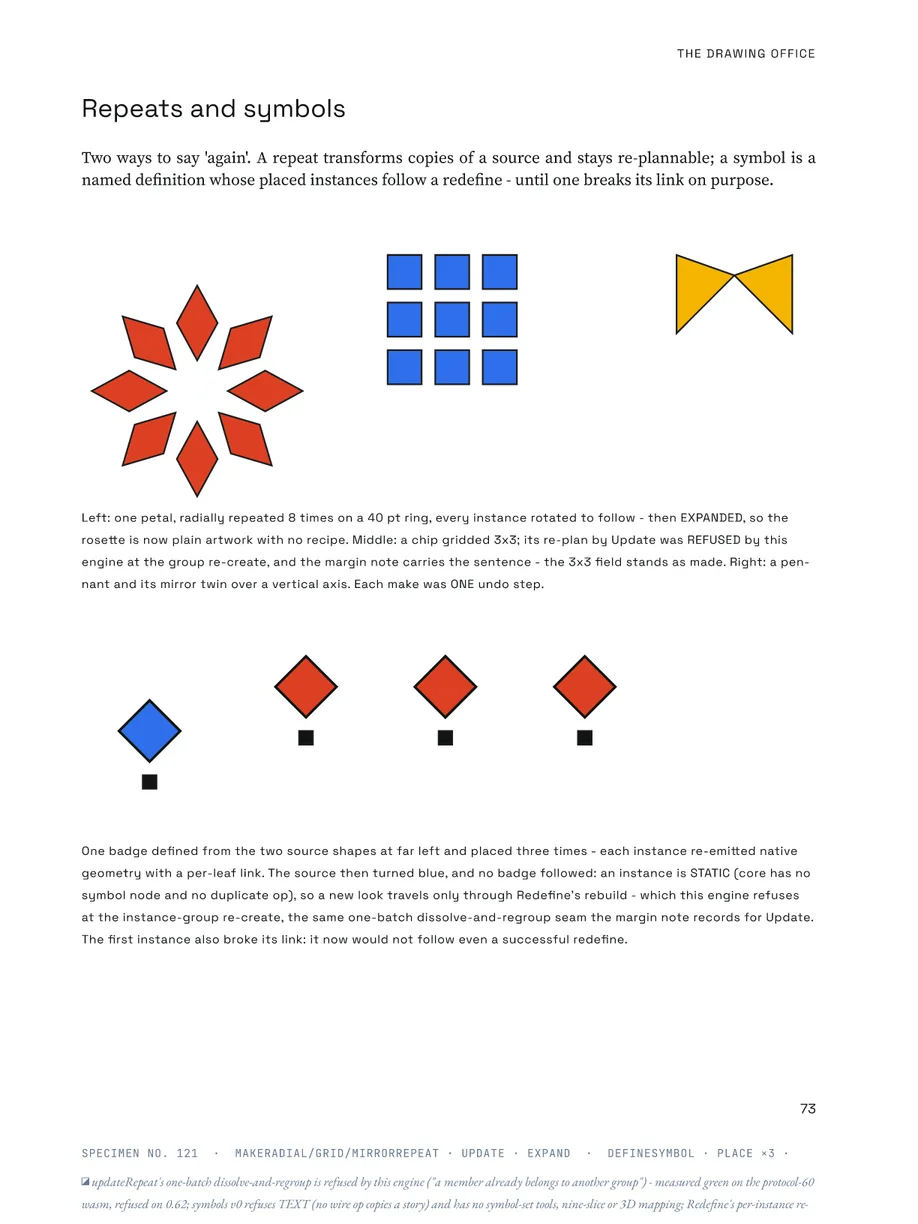

The Paged Annual — symbols

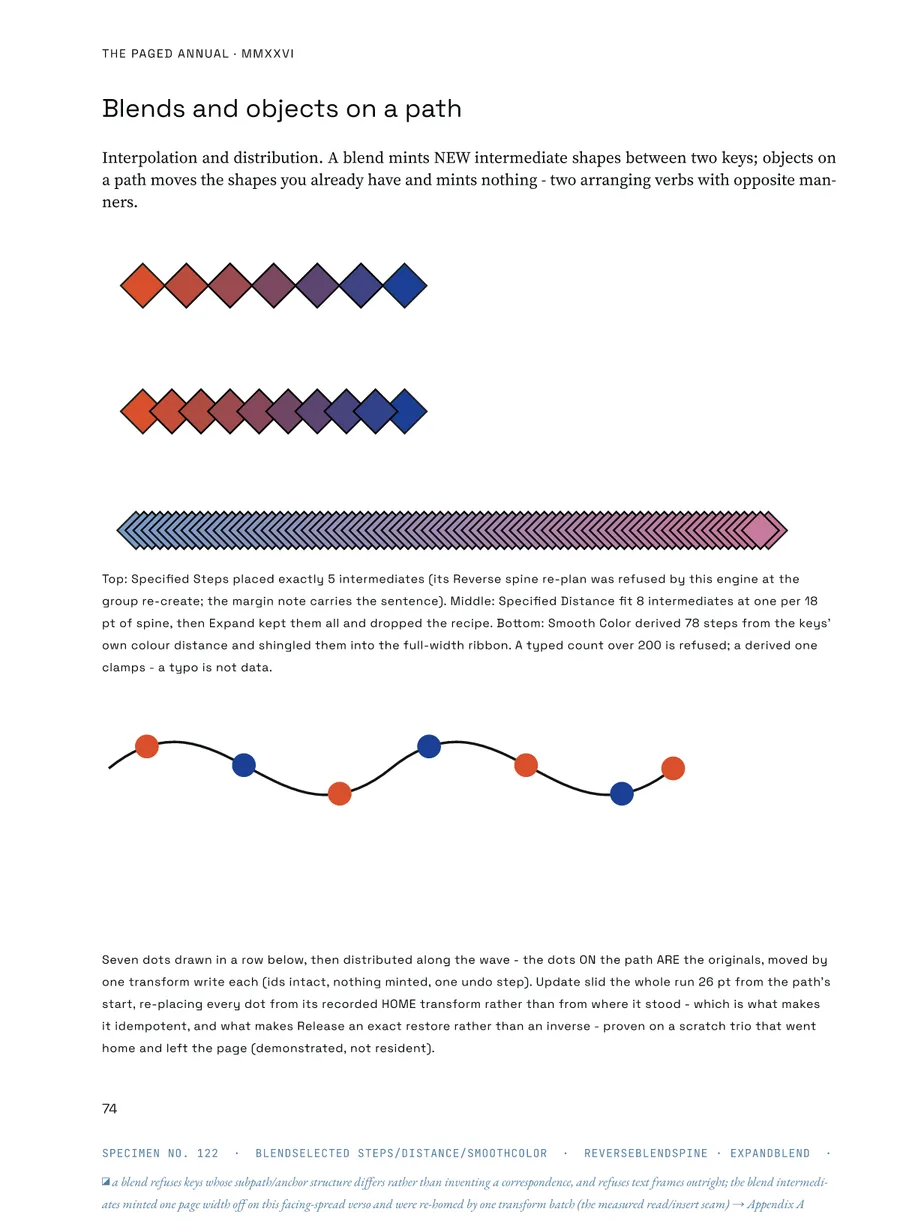

The Paged Annual — blends

The Darkroom paged.image · pp. 87–94

Raster editing on the GPU: adjustments, a contact sheet, selections and masks.

The Paged Annual — darkroom

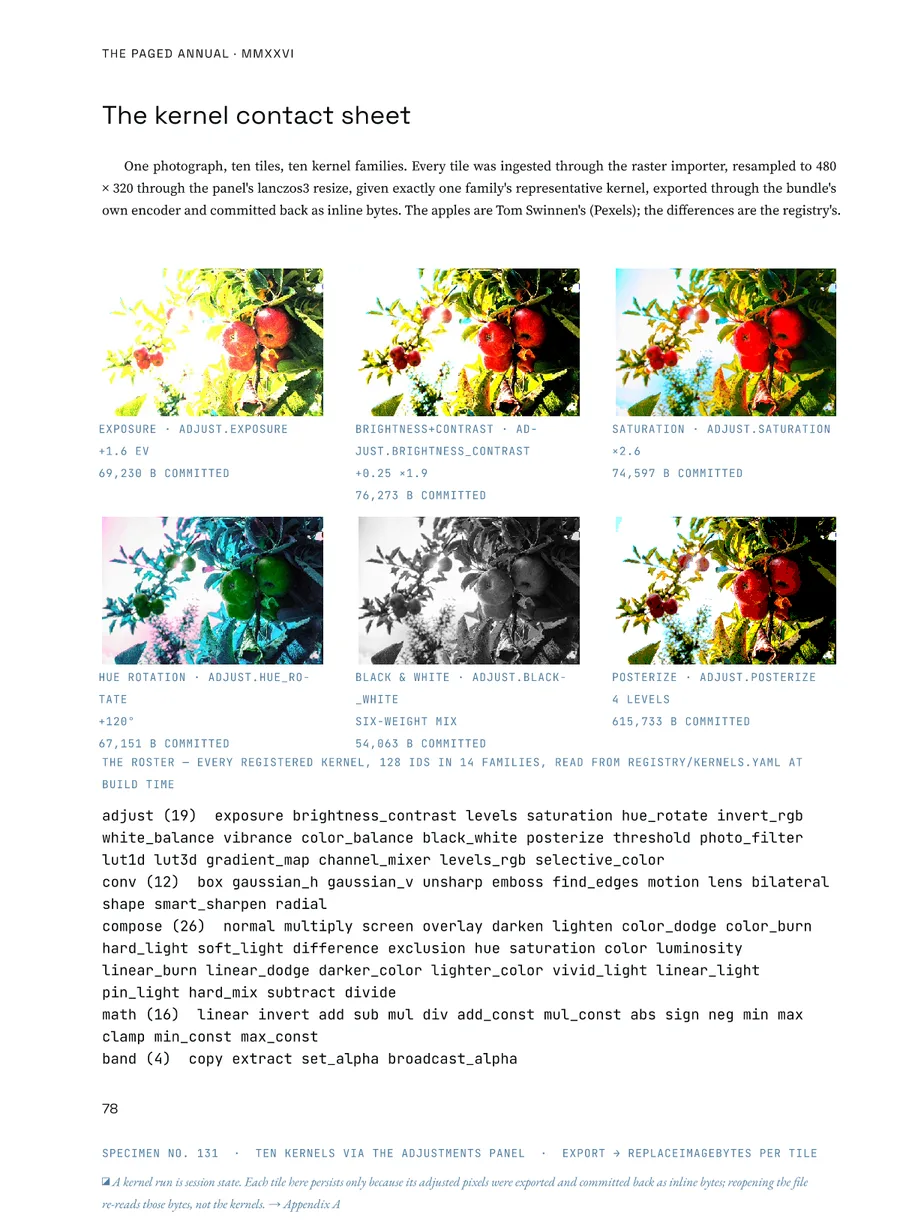

The Paged Annual — contact-sheet

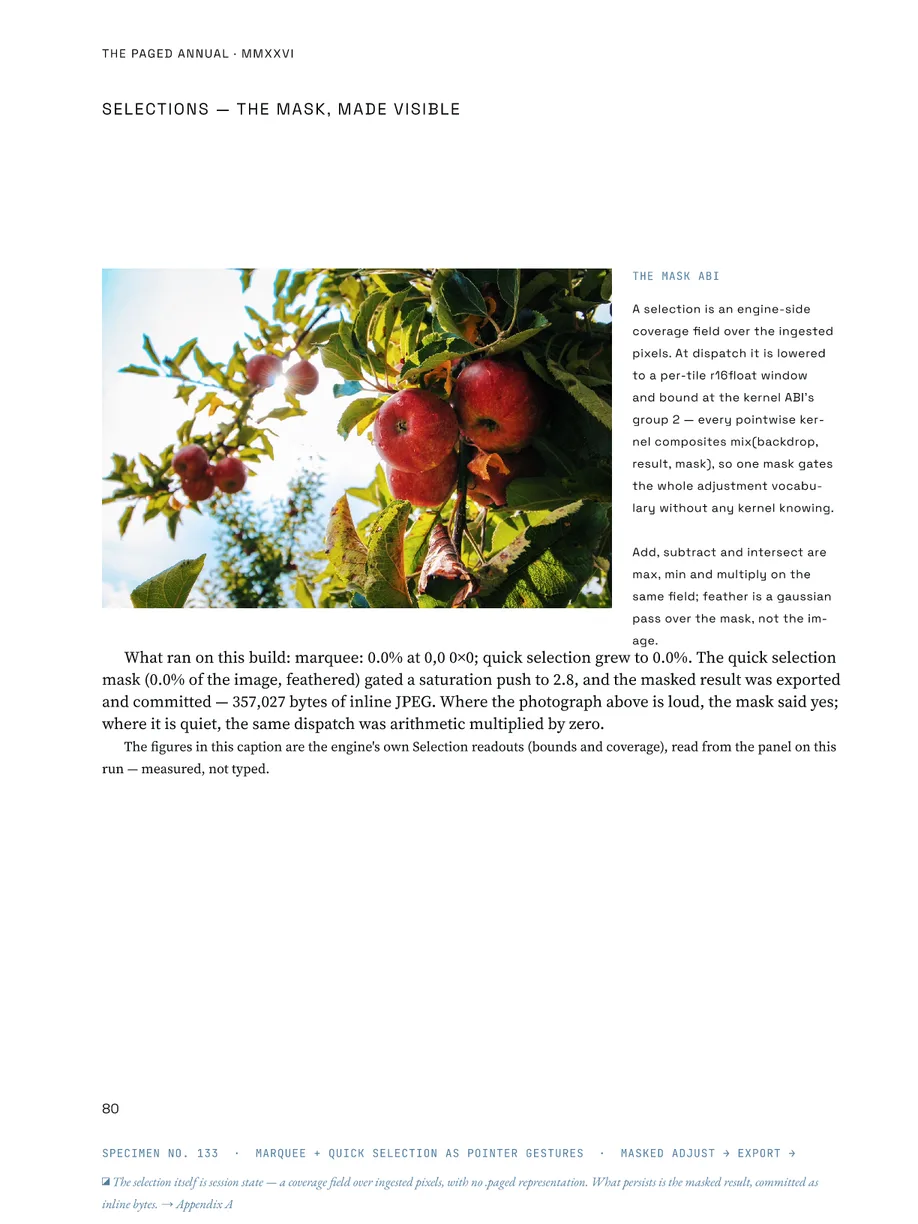

The Paged Annual — selections

The Ledger paged.sheet · pp. 95–102

Workbooks with live formulas, tables and charts, paginated like print.

The Paged Annual — ledger
The Paged Annual — chart-wall
The Paged Annual — charts
The Paged Annual — formulas

The Long Read paged.web · pp. 103–108

HTML and CSS laid out in frames, flowed across pages, and baked to native items.

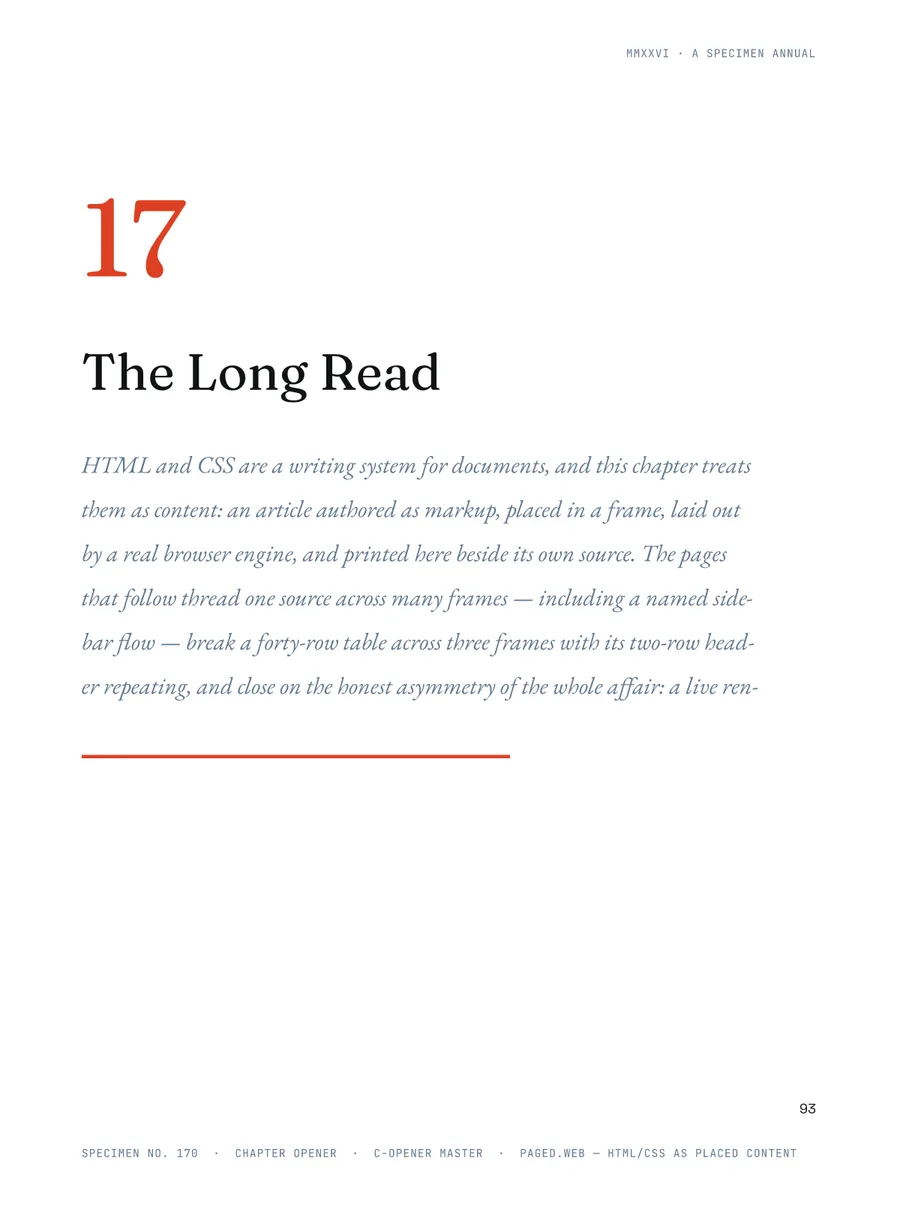

The Paged Annual — long-read
The Paged Annual — source-render
The Paged Annual — two-flows
The Paged Annual — baked-lane

The Catalog paged.data · pp. 109–114

Records bound to the layout: a catalogue, record cards and barcodes drawn as vectors.

The Paged Annual — catalog
The Paged Annual — record-card
The Paged Annual — barcodes

The Manuscript paged.doc · pp. 115–118

A Word document opened as native layout and poured into the book's own styles.

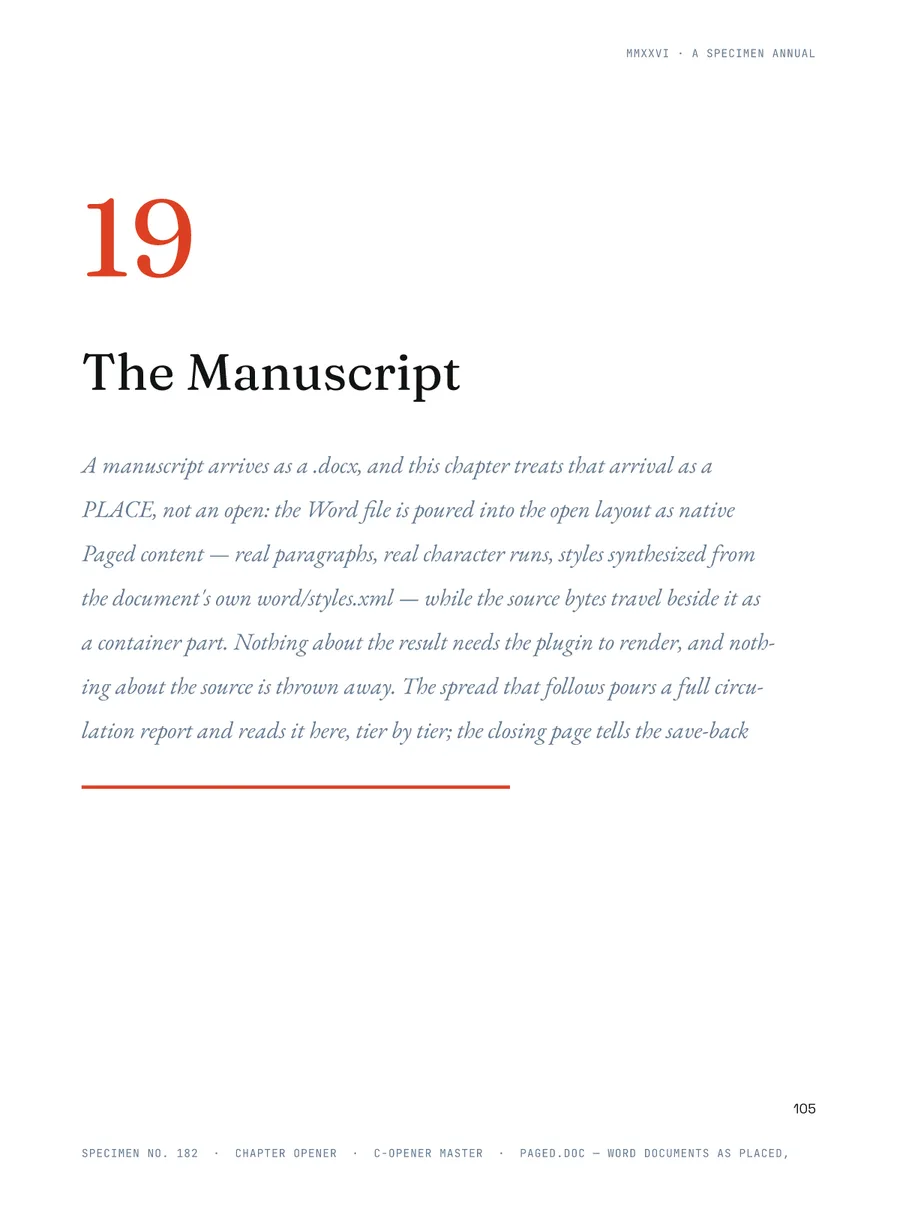

The Paged Annual — manuscript
The Paged Annual — manuscript-poured
The Paged Annual — circulation-report
Part III · chapter 20 and the appendix · pp. 119–134

The Press

Imposition and proof, preflight, and an appendix that lists the book’s own limits, its index and its colophon.

The Paged Annual — imposition
The Paged Annual — preflight
Imposition & Proof · Preflight

paged.slide
Not in the book: the plugin is not yet loaded by the editor.
PDF import
Its import replaces the open document by design, so it is exercised as an exit path, not as a page.
Live render state
Adjusted raster pixels and the live spreadsheet grid are render state. The file keeps the native result and the plugin data, and rehydrates them on open.
Parity — our render against InDesign’s

Drag the line

Six pages from the measured run, each shown as paged renders it and as InDesign renders it from the same IDML. Every page of the book is held to its own measured ceiling for structural similarity (SSIM), mean colour difference (ΔE) and the share of changed pixels; a page over its ceiling counts as a renderer regression to fix, never as a ceiling to raise.

Page 59 doesnot pass today. Page 59 sits in the effects chapter, where the engine’s frame-effect families are composed together, and it is over its ceiling. It is in the slider anyway.

Page 1 as InDesign renders itPage 1 as paged renders itpagedInDesign
page 1 · the coverSSIM 0.981mean ΔE 0.78within its ceiling — passes
The numbers

Measured, not estimated

134
pages
128 / 134
pages within their InDesign ceiling
0.964
median SSIM against InDesign
0.97
median mean ΔE against InDesign
117 of 118
editing operations exercised

6 pages are over their ceiling in this run. SSIM 1.000 and ΔE 0 would be identical pixels.

Downloads

Take the book with you

the-paged-annual.idml
The baked twin: every page item native, no plugin data. What InDesign opens, and what a reader without the plugins sees.
the-paged-annual.paged
The live document. Plugin frames keep their data and container parts, so reopening it in the paged editor brings them back.

Download the IDML · 0.7 MBDownload the .paged · 12 MB

Render it live

All 134 pages, in this tab

The same IDML, composed and painted by the engine on WebGPU in your browser. Drag through it, zoom into it. Nothing is uploaded and no server renders anything.

The Paged Annual — the cover
static render of the same page — the engine draws it live on request
